Variable Displacement With Auxiliary Package
Gauge Pressure Ranges
6000 PSI – A & B port
200 PSI – case port
500 PSI – replenishment port
1000 PSI – servo port

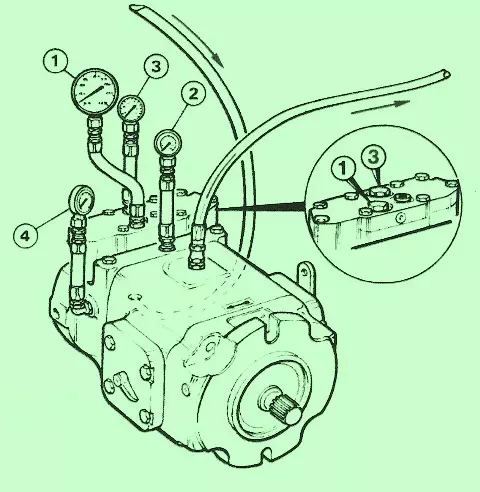

Putting in the system pressure gauge, make sure the modulating pin is in the port.
Don’t put the gauge in the servo filter line when you the isolation plug is put in w/o a T fitting. If you don’t do that will make you have an auxiliary shaft fiasco.
Closed Circuit
Replenishment 180-220 PSI 12.4-15.1 bar + case pressure
Servo 300 PSI 20.6 bar + case pressure +40 PSI, 2.75 bar per 1000 PSI,68.9 system pressure
Case 75 PSI 5.17 bar continuous 125 PSI 8.6 bar intermittent
Open Circuit
Replenishment – no
Servo 160 PSI, 11 bar + case pressure + 62.5 PSI 4 bar per 1000 PSI, 68.9 bar system pressure ( w/900 control, servo pressure is a constant 400-450 PSI 27.6 bar)
Case 40 PSI 2.75 bar max.
