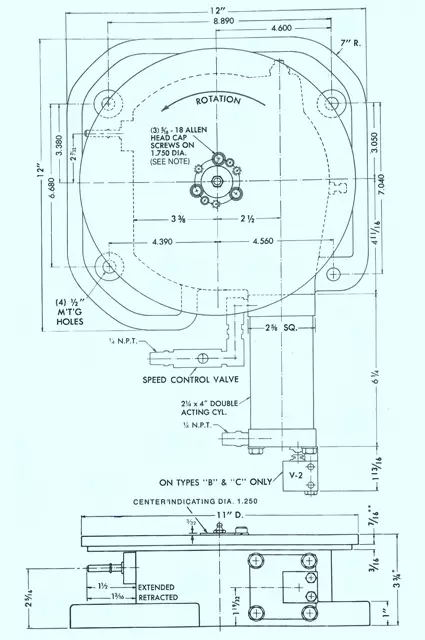

Model 11 E CCW rotation – This is an example only. It does not give a certain placement of the top plate or anything that helps tightens down the unit.Model 725 CCW rotation – This is an example only. It does not give a certain placement of the top plate or anything that helps tightens down the unit.Model 11 E, EF & F CCW rotation – This is an example only. It does not give a certain placement of the top plate or anything that helps tightens down the unit. * – 3 11/16 : w/16″ or 20″ dia. top plate, ** 3/8 for 16″ to 20″ dia top plate, *** models 11 E adn 11 EF elongated 1 1/2 and drawn back in 1 3/4″Model 725 CW – This is an example only. It does not give a certain placement of the top plate or anything that helps tightens down the unit.Dimensions – these are done on max pressure 80 PSI and weights that are pump 1″ from edge of top plateOptions – * usual voltage on one solenoid valve ( you can get other voltages) and **can’t get this in a ccw rotation.OperationSpecs – you can have 2/3 positions by indexing it twice with 4/6 station table. * – That is the max diameters. ** – usual tooling or operate non shock loads up or down base area 3: radius on 725 units and 4: radius on 11 units. Rest of the charts show how to change number of indexes on any series.
Most of this deals with pneumatic drive, accuracy, gear & rack construction, index plates, feed pawl, accessory pin and center stud.
If you need more info on this type of rotary index, call us at 662-871-8403
