Meaning of model code for example
HBOL-F2-2/0-lP-6P
HBOL = H – high pressure shaft seal used for pressure priming
L = L – 5.4 GPM – 3000 PSI Max.
M = M – 3.1 GPM – 5000 PSI Max
H = H – 1.65 GPM – 10000 PSI Max
F2 = seals for Ester Fluid
2/0 = number of pressure outlets (2,7)
lP = number of pistons 1st port ( 1p, 2p,3p)
6P = number of pistons 2nd port (4p, 5p, 6p)

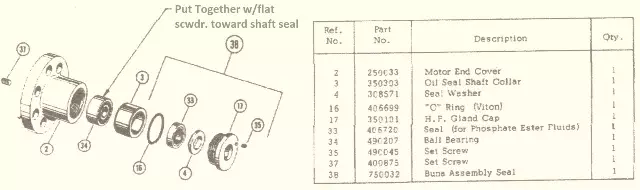

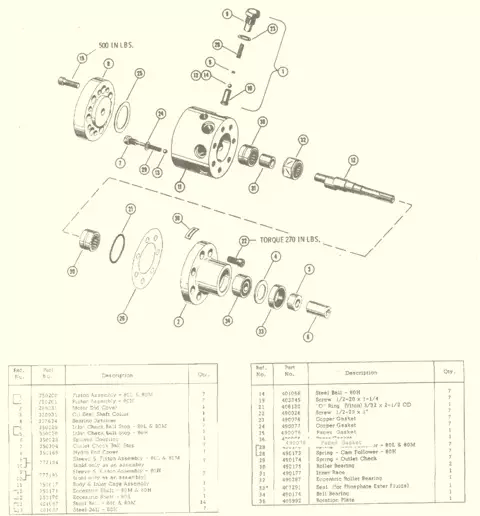

Use these diagrams and charts for ordering parts, seeing how your unit goes together or giving to a mechanic to fix your unit. Which we can do that for you. Call us at 662-871-8403
